Honeywell PX940 Barcode Verifier, 24 dots/mm (600 dpi), peeler, rewind, disp., RTC, USB, RS232, Ethernet

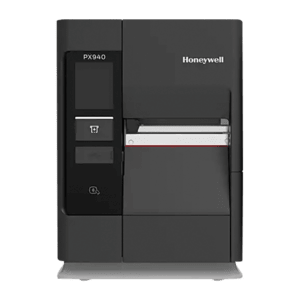

Honeywell PX940 — Industrial Label Printer with Integrated Barcode Verifier

The Honeywell PX940 is built for demanding daily use in production and logistics environments. It combines high-resolution thermal transfer printing with an integrated barcode verifier in a single unit — every label is checked immediately after it prints. Faulty labels never make it onto your products or pallets.

Sharpness that holds up in practice

At 600 dpi (24 dots/mm), the PX940 produces crisp barcodes and readable small text even on narrow labels. Maximum print width is 106 mm with a media width of up to 114 mm, covering most warehouse and production label formats. The maximum roll diameter of 213 mm means large rolls fit without modification, so you spend less time on roll changes and more time running the line.

Hardware built for daily wear

The built-in peeler and rewinder mean labels release automatically — no tearing by hand, no interruptions to your workflow. The touchscreen lets you adjust settings directly on the device without needing a connected computer nearby. The real-time clock (RTC) keeps date and time stamps accurate on every label, which matters when traceability is part of your process.

Connectivity ready from day one

Three USB ports, an RS232 serial port, and a 10/100 Mbit Ethernet interface give you flexible integration options — whether you're connecting directly to a workstation or dropping the printer into a network-based print environment. With 1 GB RAM and 256 MB Flash, the PX940 handles larger label files without hesitation.

Verification built into the workflow

The integrated barcode verifier performs quality checks automatically as each label exits the printer. No separate verification device, no extra station on the line. Black Mark Sensor and Gap Sensor ensure correct media feeding across different label materials, so you're not chasing misfeed errors mid-shift.

Technical specifications

• ·Print technology: Thermal transfer
• ·Resolution: 600 dpi (24 dots/mm)
• ·Max. media width: 114 mm
• ·Max. print width: 106 mm
• ·**Max.
