Honeywell PM45, Mega Dome Door, 8 dots/mm (203 dpi), peeler, LTU, LTS, disp., USB, USB Host, RS232, Ethernet

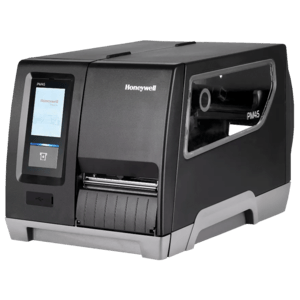

Honeywell PM45 – Thermal Transfer Label Printer for Daily Heavy Use

The Honeywell PM45 is a midrange thermal transfer label printer built to handle the pace of warehouses, shop floors, and production areas. When the queue builds up and labels need to go out fast, this printer keeps moving without slowing the rest of your operation down.

Fast, accurate printing — even on your busiest day

At a maximum print speed of 300 mm/s and a resolution of 203 dpi (8 dots/mm), labels come out cleanly and quickly. Maximum media width is 114 mm and print width 106 mm, which covers a wide range of label sizes without needing to swap hardware. The 256 MB RAM and 512 MB Flash memory mean even complex label templates and long print runs go through without the printer stalling.

Mega Dome Door — roll changes in seconds, no tools needed

The Mega Dome Door design opens wide and gives you clear access to the media path. Swapping a roll or cleaning the printhead takes moments — no screwdrivers, no technical know-how required. With a maximum roll diameter of 213 mm, you are reloading less often and spending more time on everything else.

Peeler, liner take-up, and Label Taken Sensor

The built-in peeler strips the backing from each label automatically, so every label is ready to apply the instant it comes out. The liner take-up spindle collects the waste backing inside the unit — no pile of strips building up on your counter or workbench. The Label Taken Sensor holds the next label until you have taken the previous one, which eliminates wasted labels and keeps your stock accurate.

Touch display and flexible connectivity

The touch screen lets you adjust settings directly on the printer — no laptop needed on the warehouse floor or behind the counter. Connectivity covers USB (Type B), USB Host, RS232, and Ethernet, so the PM45 fits into practically any existing setup regardless of how your point-of-sale or inventory system is connected.

Technical specifications

• ·Print method: Thermal transfer
• ·Resolution: 203 dpi (8 dots/mm)
• ·Max. print width: 106 mm
• ·Max. media width: 114 mm
• ·Max. roll diameter: 213 mm
• ·**Max.
