Honeywell PM45, 16 dots/mm (406dpi), disp., RTC, USB, USB Host, RS232, Ethernet

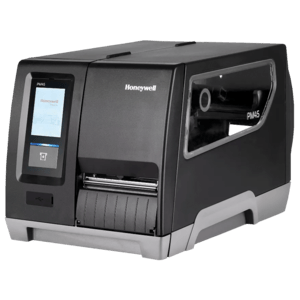

Honeywell PM45 – Sharp Label Printing for Busy Operations

The Honeywell PM45 is built for businesses where label printing happens constantly and print quality matters. At 406 dpi (16 dots/mm), even small barcodes and fine text come out crisp and scannable — your barcode reader picks up the code first time, every time, without reprints slowing you down.

Speed That Keeps Up With Your Workload

At a maximum print speed of 250 mm/s, labels are never the bottleneck — even when orders are going out the door fast. The maximum print width of 104 mm covers the most common label formats, and the maximum media width of 114 mm gives you room to move between different label sizes without fuss.

Touchscreen and Real-Time Clock for Smoother Daily Use

The built-in touchscreen lets you adjust settings directly on the printer — no need to sit down at a computer every time something needs changing. The real-time clock (RTC) automatically adds the correct date and time to each label, which is particularly useful for best-before markings, delivery labels, or any time-stamped documentation.

Broad Connectivity — Works With What You Already Have

The PM45 comes with USB (Type B), two USB Host ports, an RS232 serial port, and an Ethernet network connection. Whether your point-of-sale or warehouse system connects via network or cable, you can get this printer up and running without changing your existing setup. The two USB Host ports also let you plug in a barcode scanner or USB stick directly into the printer.

Technical Specifications

• ·Print method: Thermal transfer
• ·Resolution: 406 dpi (16 dots/mm)
• ·Max. print width: 104 mm
• ·Max. media width: 114 mm
• ·Max. roll diameter: 213 mm
• ·Max. print speed: 250 mm/s
• ·Memory: 256 MB RAM, 512 MB Flash
• ·Connectivity: USB (Type B), USB Host (×2), RS232, Ethernet
• ·Display: Touchscreen
• ·Real-time clock: Yes
• ·Country of origin: Malaysia
• ·Warranty: 12 months

A power supply unit is included. The power cable is ordered separately — remember to add it to your order.

Getting Up and Running

If you need help setting up the printer or connecting it to your existing systems, get in touch with Vaivatta. We will make sure the printer is in productive use as quickly as possible.
