Elo Touch Solutions Open-Frame (90L/63L/64L Series), 17.8cm (7''), Projected Capacitive, 10 TP, USB, USB-C, kit (USB),

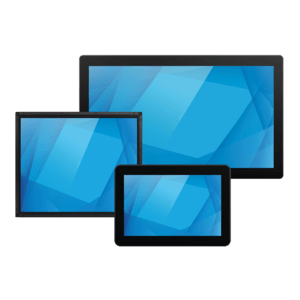

Elo 7" Open-Frame Touch Screen (90L/63L/64L Series)

This Elo Touch Solutions screen is built to sit permanently inside a POS setup, a kiosk, or any fixed service point. The open-frame design means the panel mounts directly into your counter or hardware enclosure — only the screen is visible, no bulky outer casing. The result is a clean, easy-to-maintain surface that fits naturally into cafés, restaurants, and retail counters.

Touch that keeps up during a busy shift

Projected capacitive touch recognises up to 10 simultaneous touch points, with a 40 ms response time. Whether staff are moving quickly through an order screen or a customer is tapping a payment prompt, the display follows without lag. The flat Clear Glass surface wipes down in seconds between customers.

The 1280×800 pixel resolution at a 16:10 aspect ratio gives menu and payment applications the screen space they need to stay readable. At 400 cd/m² brightness, the image holds up under the kind of ambient light you get in a well-lit shop or a busy café counter. The 88/176° viewing angle (horizontal/vertical) means both staff and customers can read the screen at the same time without either person having to move.

Connections and installation

The screen connects to your POS computer or other hardware via USB Type A, USB-C, DisplayPort, or HDMI. Touch input travels over the USB cable — no specialist drivers or lengthy configuration required in most setups.

VESA 75×75 mm mounting points let you attach the panel to standard brackets and stands. In the box you get USB Type A, USB-C, and HDMI cables plus a quick-start guide. Power cable and power supply are ordered separately.

The right fit for a fixed point of sale

The 7-inch size is enough for clear menu navigation and payment views without taking up counter space you need for other things. Because the open-frame panel sits flush with the surrounding structure, the counter stays tidy and there are no edges to catch spills or crumbs.

If you want to check compatibility with your current POS system before ordering, get in touch with Vaivatta — we are happy to help you make sure everything works together from day one.
