BIXOLON BK3-31, 8 dots/mm (203 dpi), presenter, USB, RS232, kit (USB)

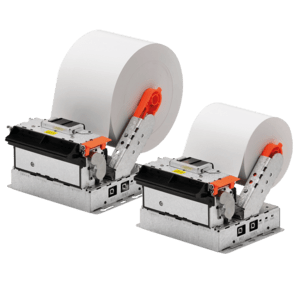

BIXOLON BK3-31 – Print Mechanism for Kiosk and Self-Service Installations

The BIXOLON BK3-31 is a mountable direct thermal print mechanism built to sit inside a kiosk or self-service terminal — not a standalone desktop device. If you are building or refreshing a self-checkout counter, ticketing kiosk, or any unmanned service point, this is the print component that goes into the enclosure and handles receipts automatically as part of the customer journey.

The presenter keeps the receipt where the customer can reach it

The built-in presenter catches the receipt after printing and holds it out for the customer to take. In an unmanned kiosk, nobody is standing at the counter to hand anything over — so this matters. The receipt waits at the slot rather than dropping to the floor or jamming inside the unit.

Fast enough for your busiest moments

At up to 250 mm/s, the receipt is ready before the customer has finished picking up their card. The printer will not become the bottleneck during a lunchtime rush or a Saturday afternoon queue.

Technical specifications

• ·Print method: Direct thermal
• ·Resolution: 8 dots/mm (203 dpi)
• ·Media width: Up to 120 mm (supported widths: 72 mm and 83 mm)
• ·Max speed: 250 mm/s
• ·Connections: USB (Type B) and RS232
• ·Emulation: BXL/POS
• ·Black Mark Sensor: Included
• ·Country of origin: Korea (KR)
• ·Warranty: 24 months

What is in the box

The Kit (USB) includes a USB cable (1.8 m), a power supply unit, and a power cable. You can connect to your point-of-sale system via USB straight out of the box — no separate cable purchase needed.

Who this is for

The BK3-31 suits businesses that are building or upgrading a kiosk or self-service terminal and need a reliable print component to integrate into the unit. It is part of BIXOLON's BK3 series, designed for permanent fixed installation over a long service life.

If you have questions about installation or compatibility with your existing hardware, Vaivatta can help — get in touch and we will work through it together.
